Compact Water Line Bursting System
The Pipe Shark Water Line Bursting System is a compact, powerful trenchless tool designed for replacing old plastic water lines by splitting the existing pipe and simultaneously pulling in new product pipe. Engineered for tight or restricted jobsite conditions, the Pipe Shark delivers reliable performance with 18,000 lbs of pull force in a lightweight, portable package.
With its small footprint and efficient hydraulic operation, the Pipe Shark is ideal for contractors who need a fast, low-impact solution for water service line replacement.
Key Features
- Compact Water Line Bursting System
One of the most compact water line bursting tools on the market—perfect for confined spaces.
- Simultaneous Split & Pull Operation
Splits old plastic water lines while pulling in new pipe in a single efficient motion.
- High Push/Pull Force
Generates 18,000 lbs of force for dependable pipe replacement.
- Wide Hydraulic Range
Operates at 4–20 gpm and 2,400–3,000 psi, compatible with most contractor hydraulic power sources.
- Lightweight & Portable
Weighs only 125 lbs, making transport and setup easy for small crews.
- Versatile Cable Compatibility
Works with 3/8″ to 9/16″ cable sizes.
-
The R8 is a compact 30 ton pipe bursting system that can replace pipes from 1″ – 8″ in diameter.
The R8 Busting System slides apart into two components (70 lbs & 70 lbs) for easy set-up and can be used vertically or horizontally. All units come with your company name / logo engraved on the red drop guard.
OPERATORS CHOICE: Wireless or Manual Hydra Controller
Due to its size and weight, the R8 can be setup in confined spaces such as basements, crawl spaces, man holes, septic tanks, and even under decks when set horizontally. It is capable of producing 30 tons of pulling force at 3,000 psi. The R8 can be hydraulically powered from a tractor or power unit. When dealing with soft soils, the 24″ x 24″ aluminum resistance plate can aid in distributing the load across the face of the chassis.
Key Features
- Compact, Two-Piece Design Breaks down into two 70-lb sections for easy handling and setup in confined spaces.
- 30-Ton Pulling Force Capable of producing 30 tons of pulling power at 3,000 psi for reliable pipe replacement.
- Versatile Installation Options Operates vertically or horizontally, ideal for basements, crawl spaces, manholes, septic tanks, and under-deck applications.
- Trenchless Pipe Replacement Eliminates the need for open trenching, reducing restoration costs and minimizing disruption to landscaping, sidewalks, and driveways.
- Low-Pressure, High-Efficiency System Patented low-pressure design offers simplicity, safety, and dependable performance.
- Wireless or Manual Hydra Controller Operators can choose the control style that best fits their workflow.
- Optional Resistance Plate A 24″ × 24″ aluminum resistance plate helps distribute load in soft soils.
-

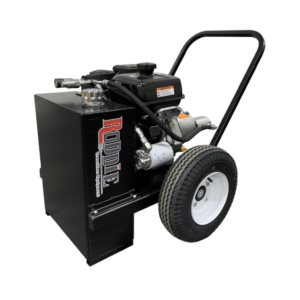

The Hydraulic Power Mini Pack is an extremely helpful piece of equipment in any trenchless system. Our Mini Power Pack is manufactured to fit our exact specifications for guaranteed compatibility with our trenchless equipment. The gasoline powered Mini Power Pack is built on a fully welded steel tubing chassis and is powered by a 14hp motor.
Featuring spin on filter and quick disconnects.
-

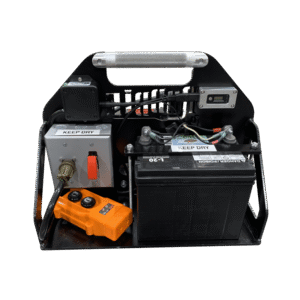

The Hydra Control is a wireless control system for the R-8 Bursting Machine.
It can be connected up to any hydraulic source with 3,000psi.
Comes with 75 feet total of jacketed pressure and return hose with quick disconnects.
The Hydra Control is battery powered eliminating the need to run power cables to the excavator. It also features an integrated charging system for the battery that plugs into any AC 120V supply, and a battery meter to let you know when it needs charging.
-

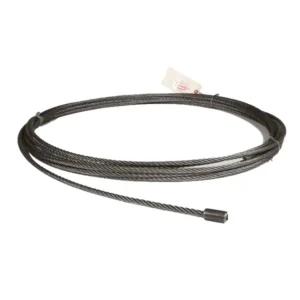

We supply pre-cut cables with swedged button end for use with the R8 Pipe Bursting Machine.
Cables come in two stock lengths with custom lengths available upon request.
Available Cable Diameters – 3/8″, 7/16″, 9/16″, 11/16″ and 3/4″
-
Common Sizes & Pulling Capacities:
- 5/16″ Cable — Pulling capacity up to 6,000 lbs.
- 3/8″ Cable — Pulling capacity up to 17,600 lbs.
- 3/4″ Cable — Pulling capacity up to 64,800 lbs.
Lengths: Available in 25′ increments.
Additional sizes and lengths are available to meet your specific application requirements.
-

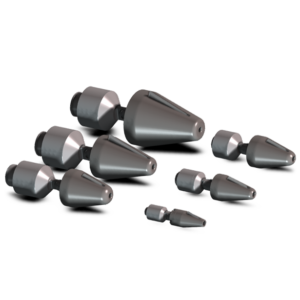

Utilizing an articulated pipe bursting head design, our heads provide you with the ability to navigate up to three 45 degree bends in a single pull without the oval damage to the PE product pipe.
This design allows the ability to enter the old host pipe neutrally, reducing the wrestling match with the pipe that often comes in tight quarters as well as distortion to the entry hole. It also eliminates the need to have to dig under and push down the newly installed PE pipe before you can make the connection to the existing pipe at the entry pit.
Made from high grade tool steel.
All of our bursting heads are heat treated to a very high Rockwell hardness for reduced abrasion, wear, and pulling pressures.
Available Pipe Sizes – 2″, 3″, 4″, 5″, 6″, 8″
Locking device
The split lock bursting heads have replaceable blades and patented articulating point behind the bursting head. The split lock cable locking device insures the cable will never pull out of the head during the bursting process.
The product pipe locking device is attached and removed from the bursting head with a clevis pin. Once removed from the head, it can be attached and locked to the new product pipe by turning the eyelet, with no need of cutting the pipe.
Our articulating bursting heads are years ahead of the competition.
-

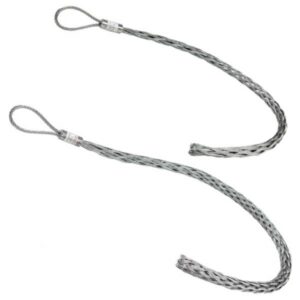

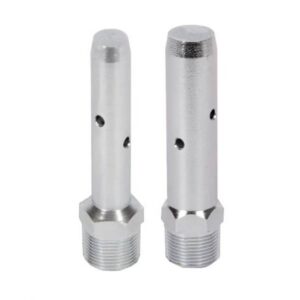

Adapters for 3/4″ & 1″ copper tubing and for wire pulling sock
-

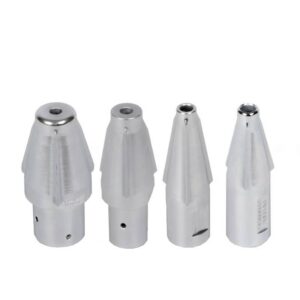

Cutterheads for 3/4″, 1″, 1-1/2″ & 2″ pipe
- Waterline replacement tool
- Zinc plate finish
-

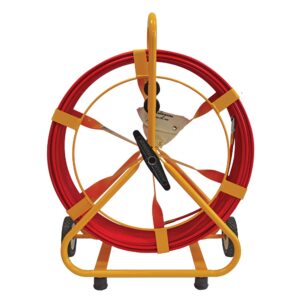

Professional-grade Jameson duct rodders for installing and locating cable in conduit, ducts, and underground applications.
Available in a wide range of rod diameters, lengths, frame sizes, and configurations to meet different jobsite requirements.
The model shown represents just one of the many options available.
Contact us for additional sizes, configurations, product recommendations, availability, and pricing.
-

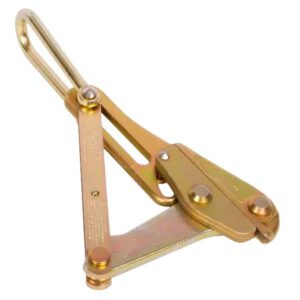

Klein grip for pulling cable for up to 8,000 lbs.
Heavy duty Klein grip for pulling cable for up to 15,000 lbs.
-
Available in a variety of sizes, styles, and configurations from multiple manufacturers to meet your specific pulling application.
Contact us for sizing, availability, and pricing.
-

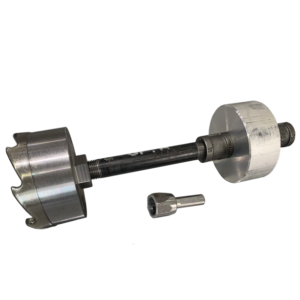

Our HDPE SDR-17 debeader removes the inner bead easily with the aid of some 1/2″ black iron pipe and cordless drill.
4 inch SDR 17 Pipe
*Pipe and Cordless drill not included
