Electrofusion Machine

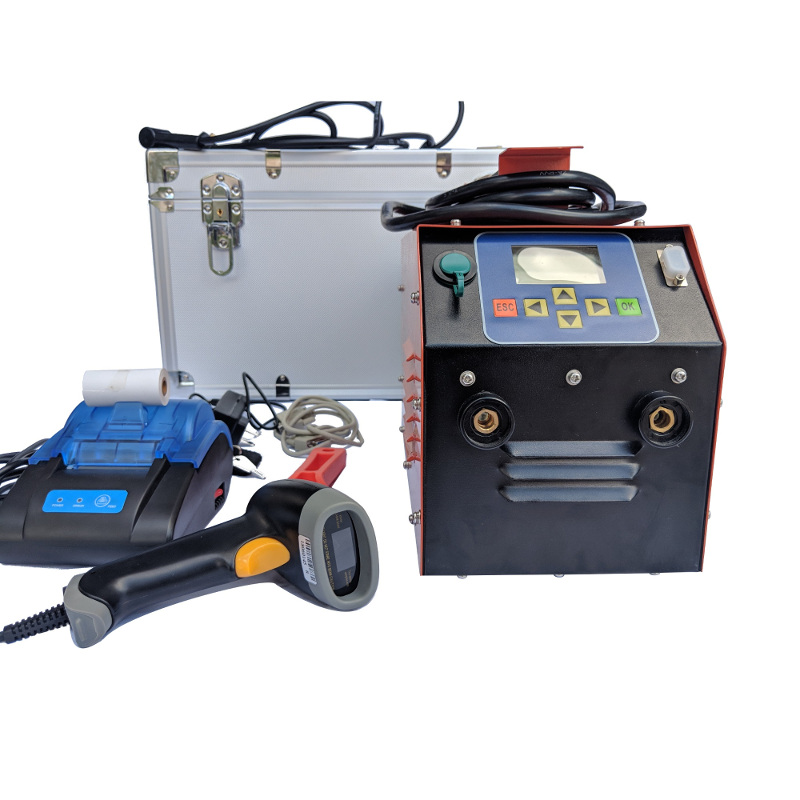

INCLUDES:
Electrofusion Machine
Printer
Scanner
Scraper
Metallic Box for transportation
Connection Cables
CHARACTERISTICS
USB: High storage capacity Able to record the information in a USB memory.
SCANNER: You can read barcodes of MILLIMETRIC accessories and in INCHES.
PRINTER: Be able to print all records stored as welding record for each Operator ID.
PRECISION: High precision in welding information, parameters, and records.
It reports the time spent in welding and cooling time.

High-level equipment with control core for configuration of parameters, measurement and protection of functions.
Input of parameters by barcode scanner or manually.
High data storage capacity

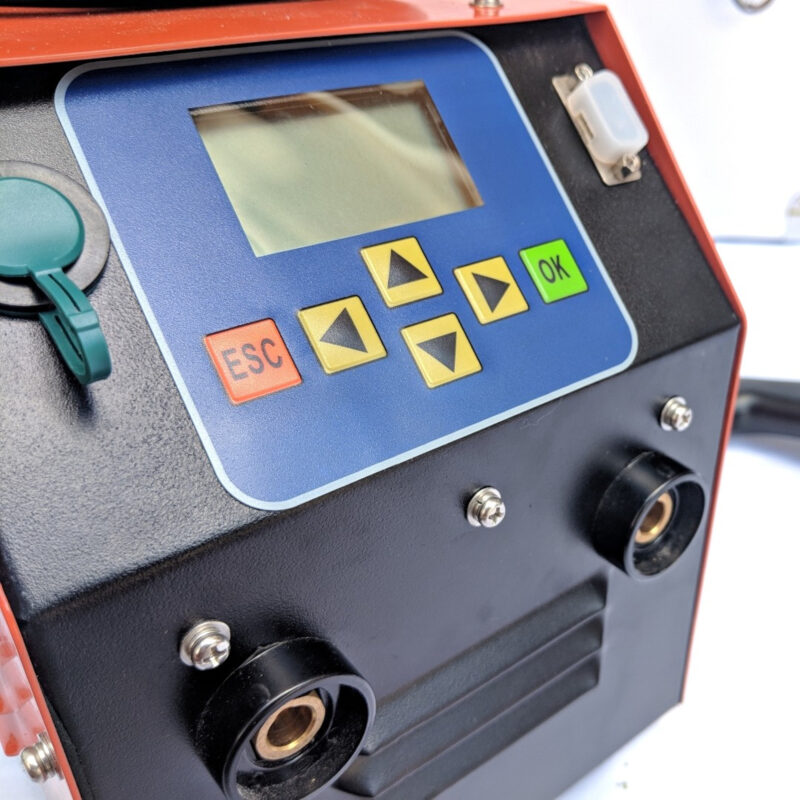

High clarity screen, operation in English, interactive interface.
Precision control of time and applied electrical energy, ensuring the quality of the welding.
Quick response time if power is lost.
10 phases of welding programming for different accessories.

SPECIFICATIONS
RANGE: 20-350mm / ½” – 14”
POWER: 3.5 KW
MACHINE WEIGHT: 10 LBS
TOTAL PACKAGE WEIGHT: 33 LBS / 20x18x13 Inch
VOLTAGE: 220V
FREQUENCY: 50/60Hz
OUTPUT VOLTAGE: AC10-75V
OUTPUT CURRENT: 55A

WORKING TEMPERATURE: 15-55°C
Working Range: 1/2″ – 14″ / 20-350mm
Voltage: 220 V 50/60 Hz
Power: 3.5 kW
