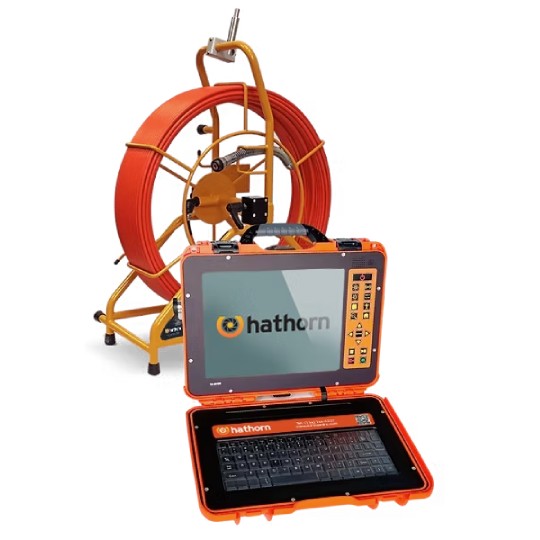

Keyhole Gas Control Module & Reel

Hathorn®’s gas camera system was specially developed in partnership with the Gas Technology Institute in Chicago.

The system and specialty camera head were designed to provide America’s utilities a way to inspect live gas mains through 90 degree keyhole pipe entries using stuffing boxes and traditional gas line insertion tools. Though not rated as intrinsically safe or explosion proof, Hathorn®’s gas cameras have been the go-to camera in the industry for over a decade providing users the ability to inspect 2-6” gas mains while recording inspections to USB or HDD.

The 12” monitor is the pro’s choice for any light condition (including direct sunshine), providing stunning HD picture quality, high contrast and 8X digital “pan & zoom” technology revealing details otherwise missed by other gas cameras.

Features

Easy to navigate menus
On screen footage counter
MPEG video files and JPEG screen shots
Audio – Integrated microphone and speaker
512Hz & 640Hz high-power sonde
Compatible with 18V Milwaukee batteries or equivalent or supplied 12V AC/DC adapter
Record to USB stick or 1Tb HDD
Controller weighing in at under 10lbs.
Adjustable lighting controls
1.35″ straight view gas camera head for use on 2″ elbows & saddle joints, in up to 6″ pipes
400ft of specialty orange push rod
12″ impact resistant daylight readable monitor
Made in North America
Machined military grade aluminum components
