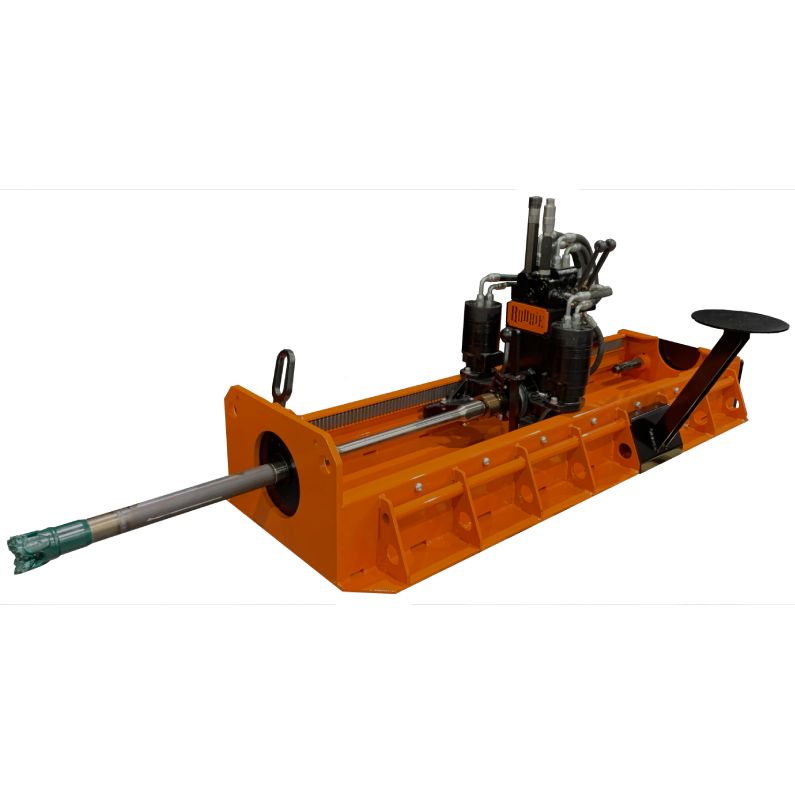

The Pit Shot® X4 Directional Drill is a powerful pit-launch HDD system engineered for utility service work where surface-launch drills cannot operate. Designed for tight or restricted jobsite conditions, the X4 installs 1″ to 6″ pipe with exceptional accuracy—ideal for sewer laterals on grade, water service lines, and conduit installations. With a rugged frame, high-torque rotational system, and a 15,000-lb push/pull capacity, the Pit Shot® X4 delivers reliable performance in demanding underground environments.
Key Features
High-Power Performance
Generates 15,000 lbs of push/pull force for demanding trenchless installations.
Precision Drilling
Ideal for sewer laterals, water lines, and conduit installations requiring accurate on-grade drilling.
Durable Oil-Filled Rotational Gear Box
Ensures smooth operation, long service life, and reduced maintenance.
Rack-and-Pinion Carriage System
Provides consistent thrust and pullback for controlled drilling.
Bolt-On Drive Chuck
Allows quick replacement and simplified maintenance.
Compact Pit-Launch Design
Perfect for locations where surface-launch HDD rigs cannot be used.
